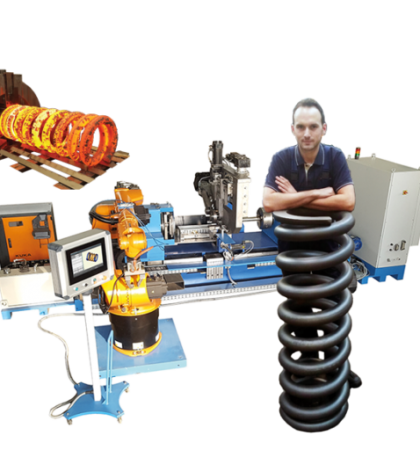

WIM-H CNC – spring lathe coilers up to 100,00 mm for hot coiling

Our newest development are custom made WIM-H CNC servo controlled spring lathe coilers for HOT coiling up to 100,00 mm of wire diameter in varoius qualities (CrSi, CrV4, W.Nr. 1.4310,EN 10270, Tungsten…).

The machines are custom made exactly acc. to the clients wishes (wire diameter range, spring OD range, spring length…)

Find out more on our Vimeo page.

Description

Our newest development are custom made WIM-H CNC servo controlled spring lathe coilers for HOT coiling up to 95,00 mm of wire diameter in varoius qualities (CrSi, CrV4, W.Nr. 1.4310,EN 10270, Tungsten…).

The machines are custom made exactly acc. to the clients wishes (wire diameter range, spring OD range, spring length…)

Find out more on our Vimeo page.

Additional information

Wire

10,00 mm (.394"), 12,00 mm (.472"), 13,00 mm (.512"), 14,00 mm (.551"), 16,00 mm (.630"), 18,00 mm (.709"), 20,00 mm (.787"), 35,00 mm (1.378"), 40,00 mm (1.575"), 45,00 mm (1.772"), 50,00 mm (1.969"), 60,00 mm (2.362"), 70,00 mm (2.756"), 95,00 mm (3.740")

Way of coiling

Hot

Type of spring

Compression
