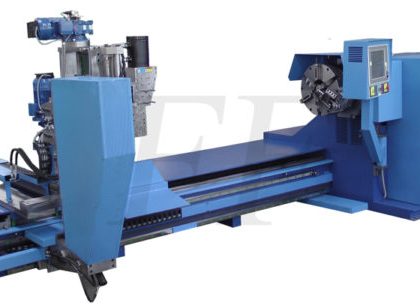

WIM-20 CNC – servo controlled spring lathe coiler up to 20,00 mm (EN 10270-1)

Automatic servo controlled hydraulic spring lathe coilers WIM-20 are used for COLD production of right and left coiled cylindrical and one side conical* compression, extension and torsion springs, different wire forms* and double torsion springs (double torsion springs on request only .

Find out more on our Vimeo page .

SKU: WIM-20 CNC

Description

Automatic servo controlled hydraulic spring lathe coilers WIM CNC are used for COLD production of right and left coiled cylindrical and one side conical* compression, extension and torsion springs, different wire forms* and double torsion springs (double torsion springs on request only – see also our LDT product line and DTL product line).

Through the use of up to 5 controlled axis (4AX + 5AX system*) you can reach higher productivity and a lot of possibilities for production of different wire forms. The machine pulls in, coils and cuts completely automatically.

The machine can be equipped also with WCS* wire catching system for the 1st coil. Through the use of WCS* you can produce completely automatically compression and extensions springs (without scrap). The HMI CNC control unit (available only on standard systems) is very user friendly and has a lot of possibilities.

The new designed graphical SpringMaster software SM4 (available on 4AX and 5AX systems) is unique software specially designed by our team for use with WIM CNC machines. The software is „learning“ with each programmed spring or wire form. That means that with each next program the machine is more adapted to the operator in order to implement better his wishes. Additionally there is very nice feature of managing the made springs with an external backup option.

The principle of this machine is: SET UP – START – WALK AWAY.

* for details see the additional information on each specific product page

Find out more on our Vimeo page .

Additional information

Wire

08, 09, 10, 12, 13, 14, 16, 18, 20

Way of coiling

Cold

Productivity pcs/min

01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 15, 20

Type of spring

Compression, Tension, Torsion, Wire bending

Wire material by tensile strength

>2.000 N/mm, 1300 N/mm2, 2000 N/mm2, 800 N/mm2

Additional information

WIM-20 CNC
Wire-Ø (high carbon wire acc. to EN 10270-1 DH ph):8 - 20 mm
.315" - .787"
Max. wire-Ø of soft wire (p.e. 50CrV4):26 mm
1.023"
Spring outside diameter:40 - 250 mm
mandrel size 25 - 180 mm (with reduction 220 mm)
1.575" - 9.842"
mandrel size .985" - 7.086" (with reduction 8.661")
Max. spring length:
- automatic:- half automatic:
1000 mm
39.37"
2000 mm
78.74"
Max. length of the legs (1. / 2.):500 mm / unlimited
19.69" / unlimited
Coiling speed:0 - 135 rpm
Cutting:hydraulic
Weight ca.:6000 kg
13,200 pound
Dimensions ca. (L*W*H):500x170x200 (without vertical reel)
16.4x5.6x6.6 feet (without vertical reel)
Coiling mandrels:72 pieces
24.0 - 100.0 mm
.949" - 3.937"
(against additional charge)
Wire straightener (standard):1 piece (covers up to 90 % of all wire dimensions) used with optional horizontal power reel for wire sizes up to 14,00 mm (.551") from the coil or for bars for all dimension
WCS - Wire catching system for automatic wire catching and automatic production of compression and extension springs (cut off in the middle of the coil):included
- up to 16,00 mm (.630") for EN 10270-1 DH ph
-above 16,00 mm the springs are coiled with manual wire catcher (included) and are cut on the legs
4AX - additional 2 asynchronous controlled axis (4 in total - 2 x servo, 2 x asynchronous) for production of different wire forms (dependent on bending radius) incl. varois bendings on the spring legs:against additional charge (wire forms up to 14,00 mm (.551") dependent on the bending radius)
5AX - additional 3 servo controlled axis (5 x servo n total) for production of one side conical compression, extension and torsion springs and different wire forms (dependent on bending radius) (faster and more precise than 4AX system) :against additional charge (wire forms up to 14,00 mm (.551") dependent on the bending radius)
3D - additional axis acc. to your needs (p.e. for custom made parts) for production in the 3rd dimension:against additional charge
Vertical mechanical reel:against additional charge
Automatic mandrel support:included
(hydraulic)
