WIM-12 CNC – servo controlled spring lathe coiler up to 12,00 mm (EN 10270-1)

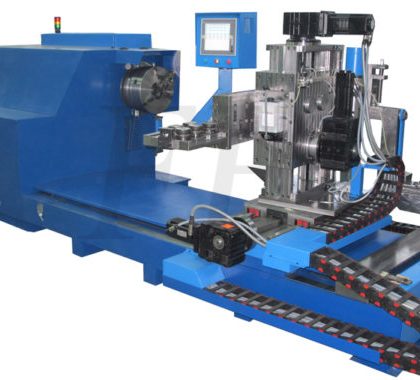

Automatic servo controlled hydraulic spring lathe coilers WIM-12 are used for COLD production of right and left coiled cylindrical and one side conical* compression, extension and torsion springs, different wire forms* and double torsion springs (double torsion springs on request only) .

Find out more on our Vimeo page .

SKU: WIM-12 CNC

Description

Automatic servo controlled hydraulic spring lathe coilers WIM CNC are used for COLD production of right and left coiled cylindrical and one side conical* compression, extension and torsion springs, different wire forms* and double torsion springs (double torsion springs on request only – see also our LDT product line and DTL product line).

Through the use of up to 5 controlled axis (4AX + 5AX system*) you can reach higher productivity and a lot of possibilities for production of different wire forms. The machine pulls in, coils and cuts completely automatically.

The machine can be equipped also with WCS* wire catching system for the 1st coil. Through the use of WCS* you can produce completely automatically compression and extensions springs (without scrap). The HMI CNC control unit (available only on standard systems) is very user friendly and has a lot of possibilities.

The new designed graphical SpringMaster software SM4 (available on 4AX and 5AX systems) is unique software specially designed by our team for use with WIM CNC machines. The software is „learning“ with each programmed spring or wire form. That means that with each next program the machine is more adapted to the operator in order to implement better his wishes. Additionally there is very nice feature of managing the made springs with an external backup option.

The principle of this machine is: SET UP – START – WALK AWAY.

* for details see the additional information on each specific product page

Find out more on our Vimeo page .

Additional information

Wire

05, 06, 07, 08, 09, 10, 12

Way of coiling

Cold

Productivity pcs/min

01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 15, 20

Type of spring

Compression, Tension, Torsion, Wire bending

Wire material by tensile strength

>2.000 N/mm, 1300 N/mm2, 2000 N/mm2, 800 N/mm2

Additional information

WIM-12 CNC
Wire-Ø (high carbon wire acc. to EN 10270-1 DH ph):5 - 12 mm
.197" - .472"
Max. wire-Ø of soft wire (p.e. 50CrV4):14 mm
.551"
Spring outside diameter:20 - 150 mm
.787" - 5.906"
Max. spring length:
- automatic:- half automatic:
650 mm
25.59"
1300 mm
51.18"
Max. length of the legs (1. / 2.):400 mm / unlimited
15.75" / unlimited
Coiling speed:0 - 150 rpm
Cutting:hydraulic
Weight ca.:2500 kg
5,500 pound
Dimensions ca. (L*W*H):370x150x160 cm
12.1x4.9x5.2 feet
Coiling mandrels:100 pieces
10.0 - 100.0 mm
.393" - 3.937"
(against additional charge)
Wire straightener (standard):1 piece (covers up to 90 % of all wire dimensions)
WCS - Wire catching system for automatic wire catching and automatic production of compression and extension springs (cut off in the middle of the coil):against additional charge
4AX - additional 2 asynchronous controlled axis (4 in total - 2 x servo, 2 x asynchronous) for production of different wire forms (dependent on bending radius) incl. varois bendings on the spring legs:against additional charge
5AX - additional 3 servo controlled axis (5 x servo n total) for production of one side conical compression, extension and torsion springs and different wire forms (dependent on bending radius) (faster and more precise than 4AX system) :against additional charge
3D - additional axis acc. to your needs (p.e. for custom made parts) for production in the 3rd dimension:against additional charge
Automatic mandrel support:included
(hydraulic)
