MPK-20

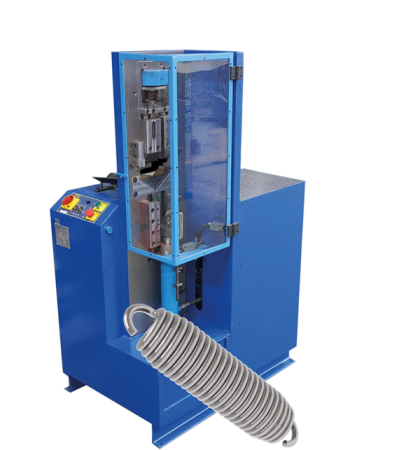

MPK-20 is a half-automatic hydraulic driven spring looping machine for production of all types of single German (machine) loops (loop height from 0.40 to 1.00 times spring media diameter) precoiled on separate spring coiling machines (p.e. WIM CNC or COM CNC spring coiling machines). Hydraulic power unit and standard tooling set to cover the range are included in the machine price. On request we are able to supply tooling with inserts for CrSi-wire. With each delivered machine you will receive a set-up DVD (avaiable in German and in English) which will allow you to learn very fast how to work with it.

Our machinery line OBW for production of loops with smaller wire diameter up to 8,00 mm (.315″) you can find here!

SKU: MPK-20

Description

Semi automatic hydraulic driven spring looping machine for production of all types of single German (machine) loops (loop height from 0.40 to 1.00 times spring media diameter) precoiled on separate spring coiling machines (p.e. WIM CNC or COM CNC spring coiling machines). Hydraulic power unit and standard tooling set to cover the range are included in the machine price. On request we are able to supply tooling with inserts for CrSi-wire. With each delivered machine you will receive a set-up DVD (available in German and in English) which will allow you to learn very fast how to work with it.

Our machinery line OBW for production of loops with smaller wire diameter up to 8,00 mm (.315″) you can find here!

Find out more on our Vimeo page .

Additional information

Wire

08, 09, 10, 12, 13, 14, 16, 18, 20

Type of spring

Tension

Way of coiling

Cold

Additional information

 MPK-12MPK-16MPK-20
Wire range (acc. to EN 10270-1 DH / ASTM A228)5 - 12 mm
.197" - .472"
7 - 16 mm
.276" - .630"
8 - 20 mm
.315" - .787"
Spring OD25 - 150 mm
.984" - 5.905"
35 - 180 mm
1.378" - 7.086"
40 - 240 mm
1.575" - 9.448"
Loop heightfrom 0.40 to
1.00 x MD
from 0.40 to
1.00 x MD
from 0.40 to
1.00 x MD
Hourly output (piece)ca. 600ca. 500ca. 400
Max. consumption (3*380V/50Hz)5.700 W5.700 W5.700 W
Weight ca.ca. 800 kg
1,760 pound
ca. 1.000 kg
2,200 pound
ca. 2.000 kg
4,400 pound
